BlueSCSI DB-25 External (v1.1a)

BlueSCSI DB-25 External (v1.1a)

$25.00$59.00

The BlueSCSI 1.1a SCSI hard drive emulator – DB-25 External Version provides a convenient way to use MicroSD cards hard drives in your Vintage Macintosh! It comes as a fully assembled solution or kit!

Just got your BlueSCSI? Start here for instructions, tips, tricks and more!

Need a DB25 cable for better access? We suggest this cable available on Amazon.

Description

BlueSCSI provides a convenient way to use MicroSD cards as hard drives in your Vintage Macintosh! It comes as a fully assembled solution or Kit!

Simple Design – Place a file on an SD card and go. Nothing to configure or setup.

Power Options – In most cases it is powered directly from the SCSI bus. If your bus can’t supply enough power it provides a berg power connector or via USB.

Performance – Up to 1.2MB/sec Read, 1.2MB/sec write.

Compatibility – Most Macintosh machines that use SCSI – Check out the Wiki page at https://github.com/erichelgeson/BlueSCSI/wiki/Supported-Systems for a full list

BlueSCSI comes in three variants:

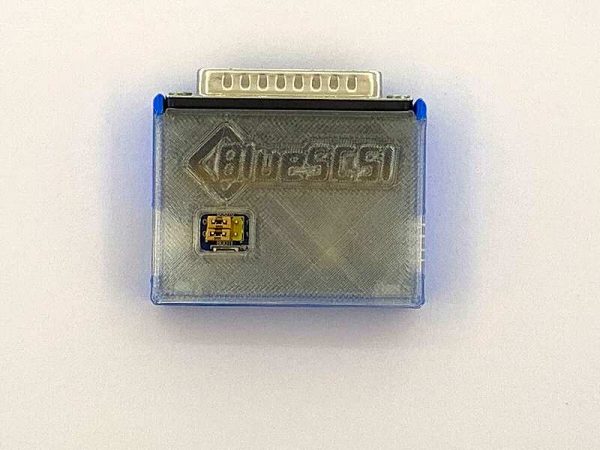

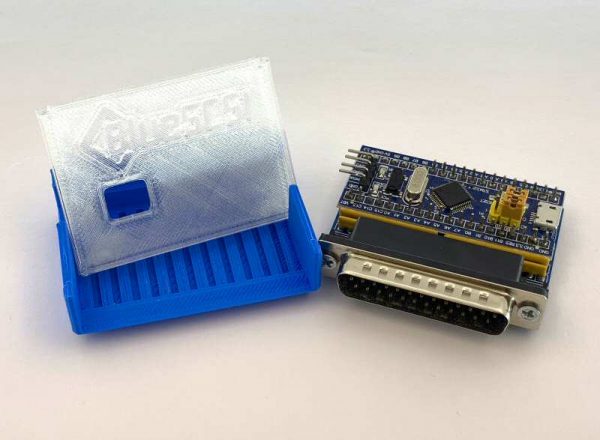

  • Fully Assembled. Assembled & tested. Just plug it in, write a file to a SD card and boot your Vintage Mac!
  • SD Socket Soldered: We will pre-solder the SD card socket for you, and let you solder the remaining parts yourself.

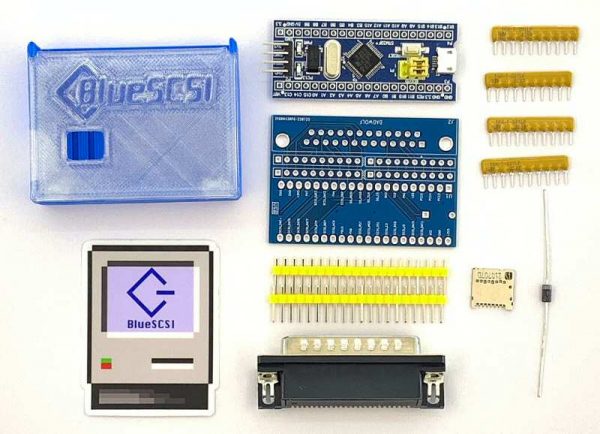

  • The kit comes with a pre-flashed & tested BluePill along with all the parts you need to get it up and running – Just add an SD card and a Vintage Macintosh! You must be comfortable with through hole soldering along with one component that is surface mount. This is a good kit to test your skills in this area! If you are not comfortable soldering please choose a fully assembled kit.

Please note regarding ST chips: Due to the global chip shortage, most of the BluePill boards that are sent out will be clones and not genuine ST chips.  They may be marked as ST but fake, they may be marked as CHK or HDM or something else.  They are still 100% compatible and supported by BlueSCSI, are all tested before being sent out.

More info on clone compatibility with the BlueSCSI here: https://github.com/erichelgeson/BlueSCSI/wiki/BluePill-(STM32)-Compatibility-(Clones-Fakes)

Additional information

Weight N/A
Dimensions N/A
Kit Type

Kit, Kit w/ SD Socket Soldered, Fully Assembled

With 3D Case?

Yes, No

Add 16GB SD Card?

Yes, No
