BlueSCSI for PowerBooks (v1.1a)

BlueSCSI for PowerBooks (v1.1a)

$5.50$55.50

The BlueSCSI 1.1a SCSI hard drive emulator – PowerBook Version provides a convenient way to use MicroSD cards hard drives in your SCSI Compatible PowerBook! It comes as a fully assembled solution or kit!

Just got your BlueSCSI? Start here for instructions, tips, tricks and more!

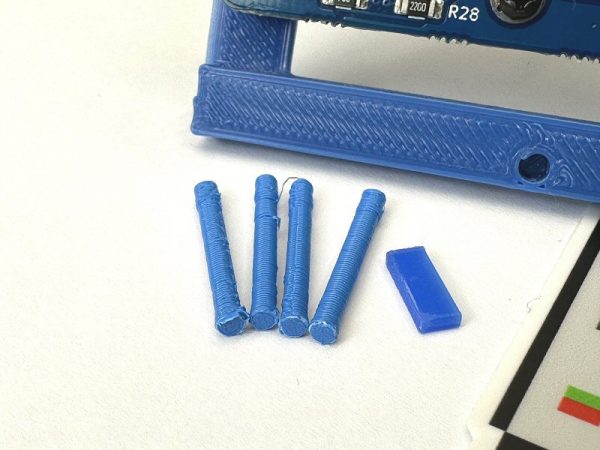

Please Note: Some PowerBook units will not properly fit the BlueSCSI with the included bracket. Double side tape is included for mounting in these situations.

Please Note: This unit is NOT compatible with PowerBooks using Internal IDE/ATA – like the 150, 190, 190cs, Duo 2300c/100, 1400 series, 2400 series and 5300 series. If you are unsure if your PowerBook has internal SCSI, check your system at the following link before ordering: https://everymac.com/systems/apple/powerbook/index-powerbook.html

SKU: BSPB11a Categories: , ,

Description

BlueSCSI provides a convenient way to use MicroSD cards hard drives in your Vintage Macintosh! It comes as a fully assembled solution or Kit!

Simple Design – Place a file on an SD card and go. Nothing to configure or setup.

Power Options – In most cases it is powered directly from the SCSI bus.

Performance – Up to 1.2MB/sec Read, 1.2MB/sec write.

Compatibility – All PowerBooks that use internal SCSI –

  • It is NOT compatible with PowerBooks using Internal IDE/ATA – like the 150, 190, 190cs, Duo 2300c/100, 1400 series, 2400 series and 5300 series.
  • If you are unsure if your PowerBook has internal SCSI, check your system at the following link before ordering: https://everymac.com/systems/apple/powerbook/index-powerbook.html

BlueSCSI comes in three variants:

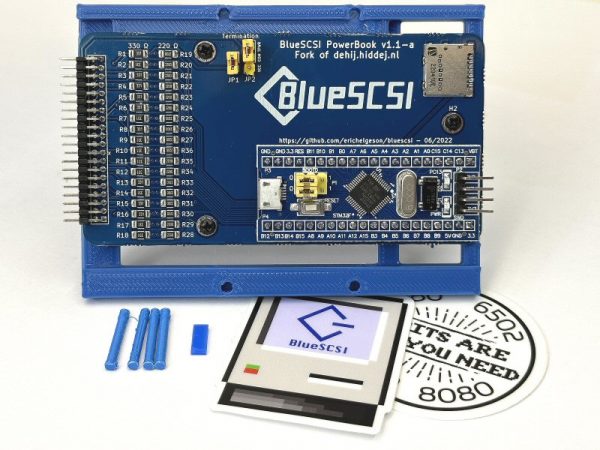

  • Fully Assembled. Assembled & tested. Just plug it in, write a file to a SD card and boot your Vintage Mac!
  • Build-It-Yourself-Kit comes with a pre-flashed & tested BluePill along with all the parts you need to get it up and running – Just add an SD card and a Vintage Macintosh! You must be comfortable with through hole soldering along with one component that is surface mount. This is a good kit to test your skills in this area! If you are not comfortable soldering please choose a fully assembled kit.

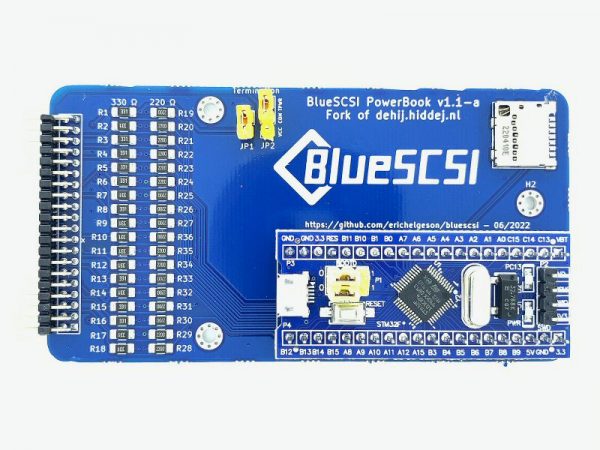

  • Board Only: yeah, you can get just the PCB if you want.

Please note regarding ST chips: Due to the global chip shortage, most of the BluePill boards that are sent out will be clones and not genuine ST chips.  They may be marked as ST but fake, they may be marked as CHK or HDM or something else.  They are still 100% compatible and supported by BlueSCSI, are all tested before being sent out.

More info on clone compatibility with the BlueSCSI here: https://github.com/erichelgeson/BlueSCSI/wiki/BluePill-(STM32)-Compatibility-(Clones-Fakes)

Additional information

Weight 2 oz
Dimensions 4 × 2.75 × 0.75 in
Kit Type

Board Only, Build-It-Yourself-Kit, Fully Assembled

SD Card Option

None, Include 16GB SD Card
