BlueSCSI Front Panel Module

Price range: $19.99 through $29.99

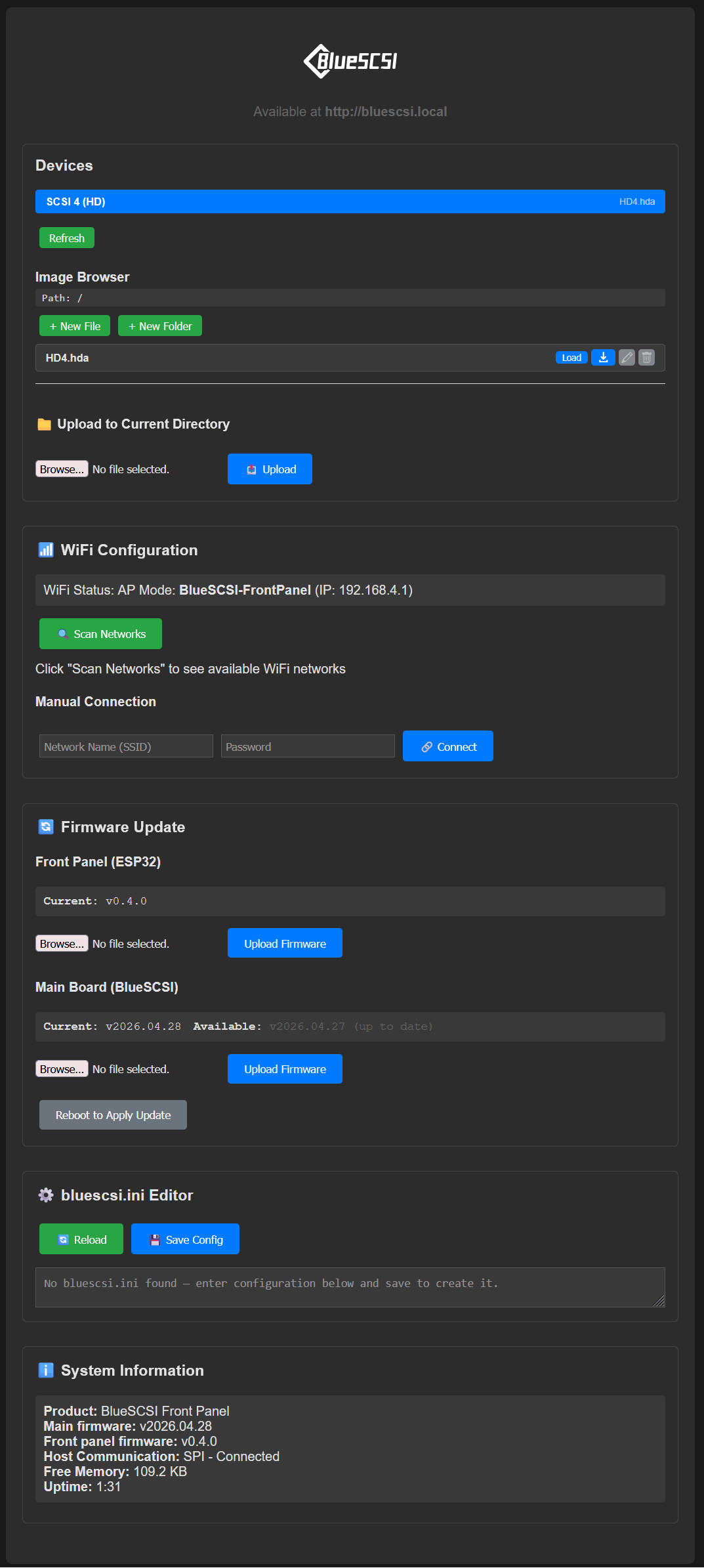

A snazzy 3.5” mounting bracket with OLED display and tactile buttons, with WiFi and a web interface you can use from your desktop or phone.

Manage images from your browser.
Update Firmware from your browser.
No more card swapping.

Works on v2 BlueSCSI and BlueSCSI Ultra: just choose your model at checkout.

NOTE: if you purchased your BlueSCSI before the Front Panel was available, you’ll need to update the firmware on your BlueSCSI to support the Front Panel commands. Check out https://bluescsi.com/docs/Updating-Firmware to download updates.

Just got your BlueSCSI? Start here for instructions, tips, tricks and more!

Firmware updates and GPLv3 source can be found at https://github.com/BlueSCSI/BlueSCSI-v2/



SKU: BS-Ultra-Front-Panel Categories: , , , , ,

Description

Overview

We’ve partnered with Ian Scott to use the same front panel design and overall case layout as his PicoIDE front panel.

The Front Panel works with all the BlueSCSI Ultra devices, and the BlueSCSI V2 desktop (via QWIIC connector). You will need to choose the v2 option if buying for a V2 desktop or Powerbook.

Device Support

This front-panel uses the same hardware and firmware as the PicoIDE which will be open sourced once the PicoIDE ships. You can find information about how to use it at https://bluescsi.com/docs/Front-Panel – GPLv3 code for the BlueSCSI beta firmware is at https://github.com/BlueSCSI/BlueSCSI-v2/releases/tag/panel/

You can also visit the documentation page here – https://picoide.com/docs/front-panel/ to see how it functions in the PicoIDE.

Remember the BlueSCSI Ultra Narrow requires Expander to work with this. Ultra Wide (68 pin and SCA 80 pin) has the SPI port built-in, so it doesn’t need the Expander.



Additional information

Weight 2.3 oz
Dimensions 4 × 4.75 × 1 in
