BlueSCSI (v2) 25-Pin External

BlueSCSI (v2) 25-Pin External


It’s Faster! It’s Better! It’s the the BlueSCSI v2 SCSI hard drive emulator!

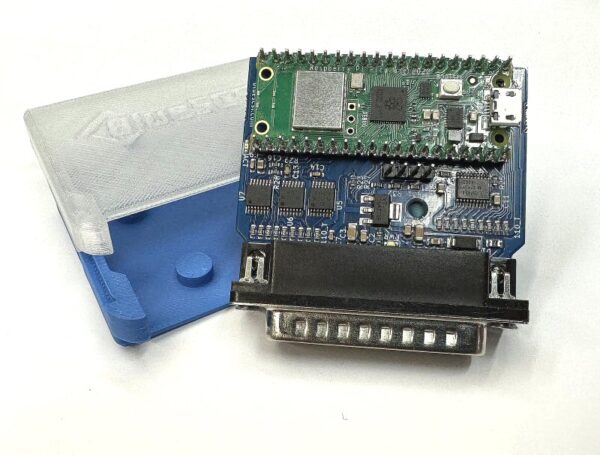

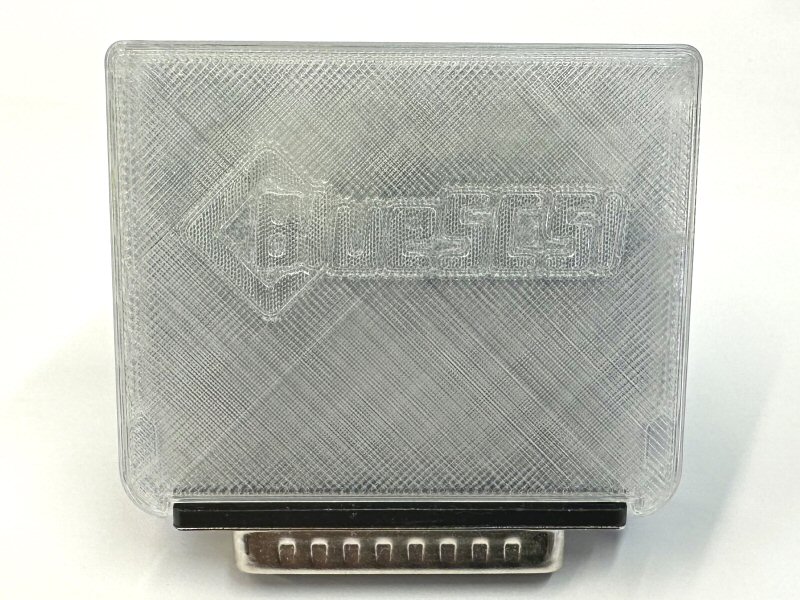

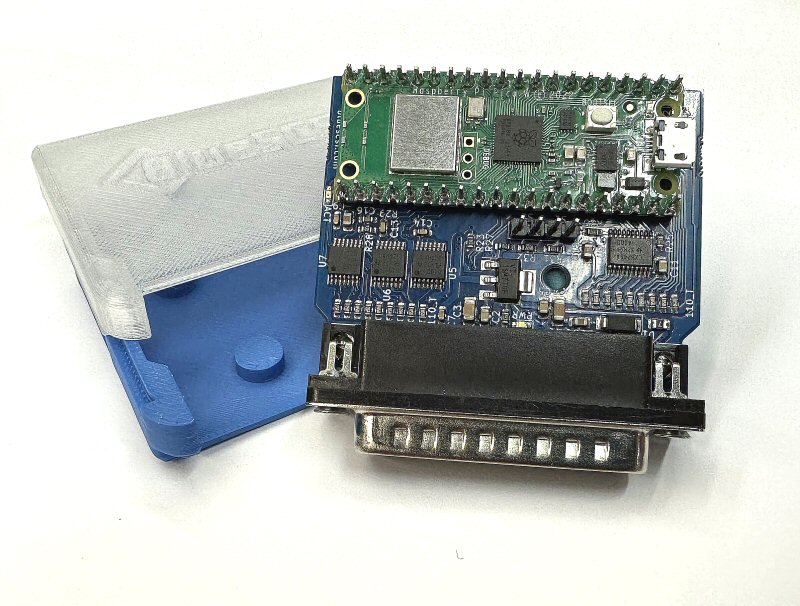

This 25-pin external version provides a convenient way to use SD cards as hard drives for your vintage computer. It comes as a fully assembled solution or kit!

For the kit builders: We’ve pre-soldered all of the surface-mount components for you. All you need to do is some through hole soldering and you’re done!

Just got your BlueSCSI? Start here for instructions, tips, tricks and more!

SKU: BS25v2-1 Categories: , , ,


BlueSCSI provides a convenient way to use SD cards hard drives in your Vintage Macintosh! It comes as a fully assembled solution or kit!

Simple Design – Place a file on an SD card and go. Nothing to configure or setup.

Power Options – In most cases it is powered directly from the SCSI bus. If your bus can’t supply enough power it provides a berg power connector or via USB.

Performance – Synchronous Fast Mode up to 8MB/sec Read/Write on supported systems!

Compatibility – Most machines that use SCSI!

BlueSCSI v2 comes in three variants:

  • Fully Assembled. Assembled & tested. Just plug it in, write a file to a SD card and boot your Vintage Computer!

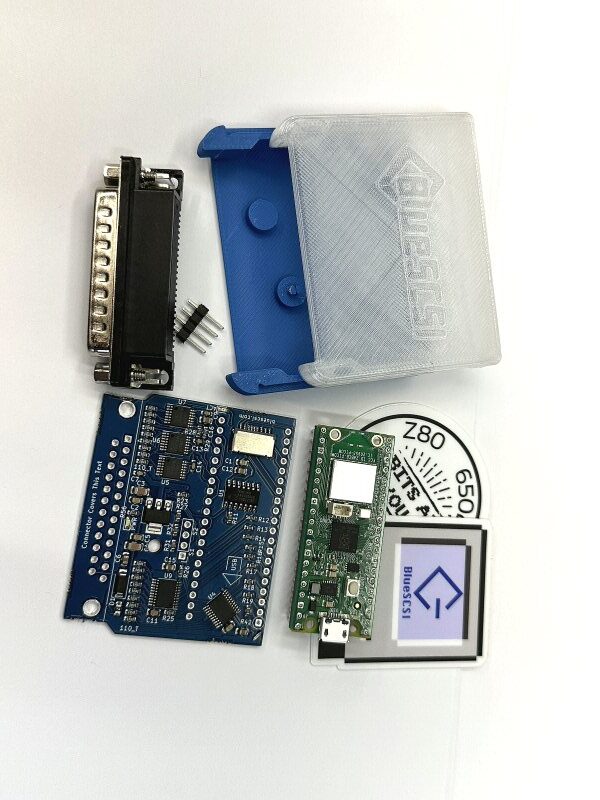

  • The Kit comes with a pre-flashed & tested Raspberry Pi Pico, along with all the parts you need to get it up and running – Just add an SD card and a Vintage Computer! You must be comfortable with through hole soldering. This is a good kit to test your skills in this area! If you are not comfortable with soldering please choose a fully assembled kit.
  • Board Only: yeah, you can get just the PCB if you want.

Additional information

Weight 1.6 oz
Dimensions 3.25 × 2.375 × .75 in
Kit Type

Fully Assembled, Build-It-Yourself Kit, PCB Only

Wi-Fi Option

No Wi-Fi, Include Wi-Fi
